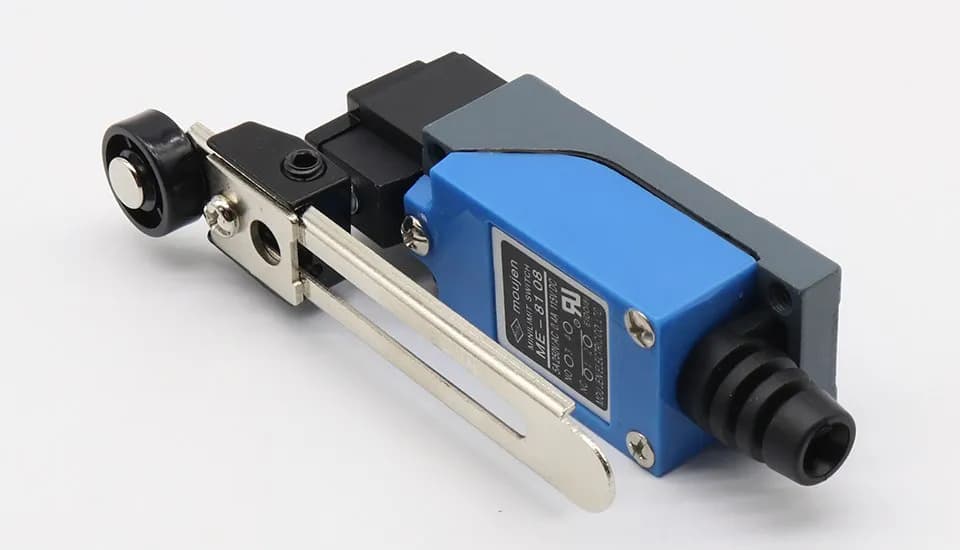

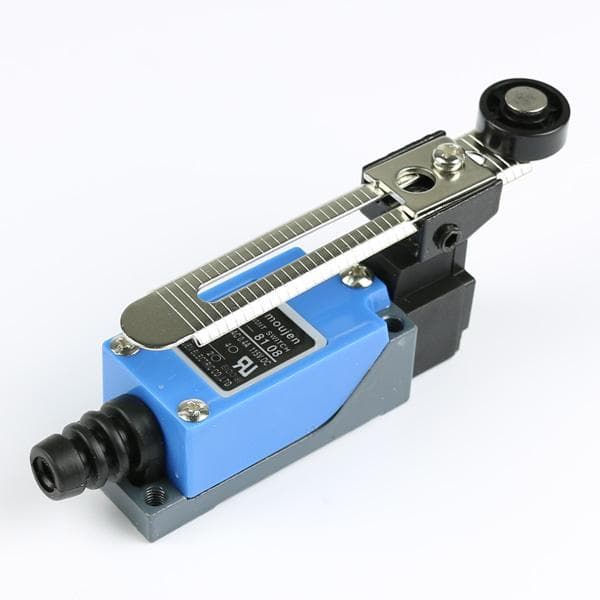

ME-8108 limit switch Rotary Adjustable

Description: Limit switch ,compact design,long mechanicatical life. Easy wiring with full open terminals. High precision, high reliability Dust proof ,water proof ,oil proof construction (IP64) Double circuit type. 5A load current Strong body with combination of reinforced plastic and aluminium Die Casting compaonents. Build in basic switch with doule spring mechanism. Characteristics: Operation speed 0.5mm-50cm/sec Operating frequency Mechanical: 120 operations/minute, Electrical: 30 operations/minute Contact resistance 25mΩ max. (initial value) Insulation resistance 100mΩ min. (at 500VDC) Dielectric strength 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity 1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts 1500VAC, 50/60 HZ for 1 minute between each terminal and ground Vibration 10-55HZ,1.5mm double amplitude Shock Mechanical durable: 1, 000m/Sec2 (about 100GS) Malfunction: 300m/Sec2 (about 30GS) Ambient temperature -5°C to +65°C Humidity <95% RH Life Mechanical: 10,000,000 operations above Electrical: 500,000 operations above Weight About 130 to 190g Degree of protection IP65 Operating characteristics: Models TZ-8104 TZ-8108 TZ-8107 TZ-8111 TZ-8112/8122 TZ-8166/8167/8168/8169 OF Max. 750g 750g 750g 900g 900g 150g RF Min. 100g 100g 100g 150g 150g - PT Max. 20º 20 º 20 º 1.5mm 1.5mm 30mm OT Min. 50 º 50 º 50 º 4mm 4mm - MD Max. 12 º 12 º 12 º 1mm 1mm - OP - - - 26 ± 0.8mm 37 ± 0.8mm
