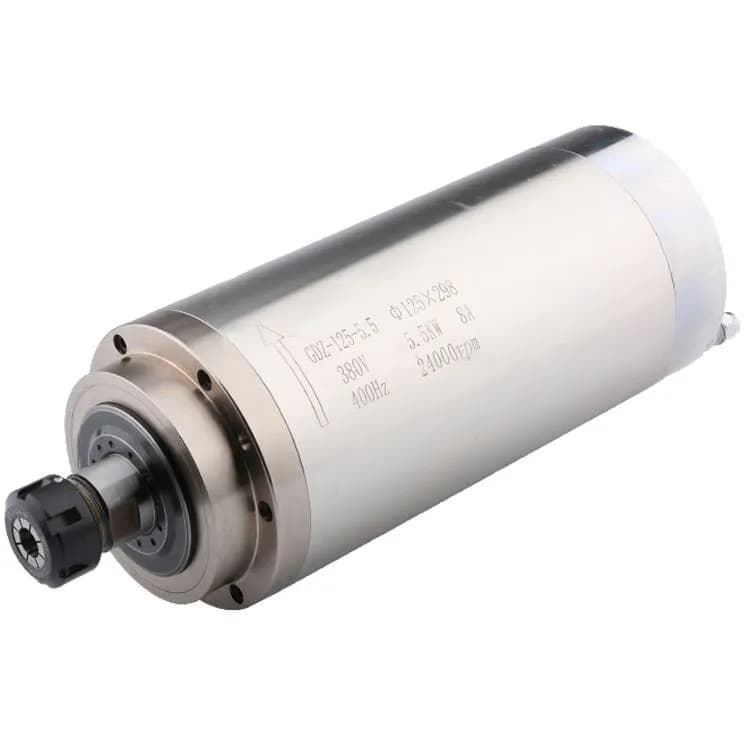

Spindle Motor 380V / 5.5KW , GDZ125-5.5

The Kit Contain: Water Cooled 380V - 5.5KW Spindle Motor, 24000RPM, ER25 - GDZ125-5.5 Inverter / speed controller 5.5KW Spindle Holder 125Cm Water Pump 95W Collet ER25 Technical parameter: Spindle type GDZ125-5.5 Diameter 125mm Speed 24000rpm Power 5.5KW Voltage 380V/220V Current 10A/17A Frequency 400HZ Joint of nose ER25 Lub grease Cool water cooling Bearing type 7007CP4*2+7205CP4*2 Weight 24KG Torque 1.85Nm Collet ER25 Collet nut 3.175mm,6mm,12.7mm 3.7KW VFD Inverter Specifications : simphoenix e500 vfd manual Model E550- Power (KW) 5.5KW Input Voltage(V) 1-phase AC 220V ±20% 50/60Hz Output Voltage(V) 0~220v Output Current(A) 25A Output Frequency (Hz) 0~1000Hz
