Specification:
1, HDMI version: HDMI2.0 version
2, HDCP version: HDCP1.2 version
3, supported HDMI resolution: 2160/1080P24fs/1080P/1080i/720P/576P/576i/480P/480i
4, supported video color format: 24bit
5. Supported audio formats: LPCM7.1/Dolby-AC3/DTS/DSD
6, data transmission speed: 5.1Gbps
7, input video signal: 5.0Volts p-p
8, input line support: <25Mhdmi AWG26
9, the output line distance: ≤ 40mCAT6
10, support the output line: 25mAWG24or20mAWG26
11, the maximum operating current: 1500mA
12, power adapter: no power
13. Power Adapter Specifications: Input: AC (50Hz, 60Hz) 100V~220V; Output: DC 5V

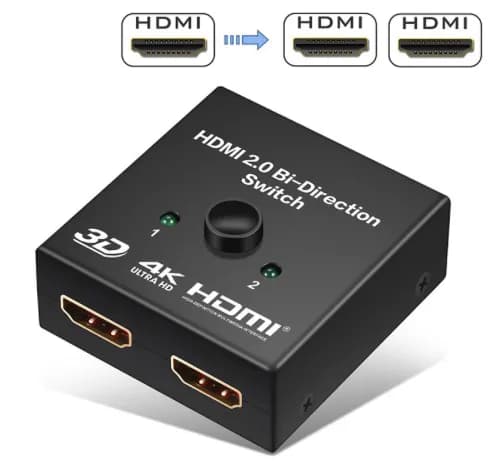

Features:

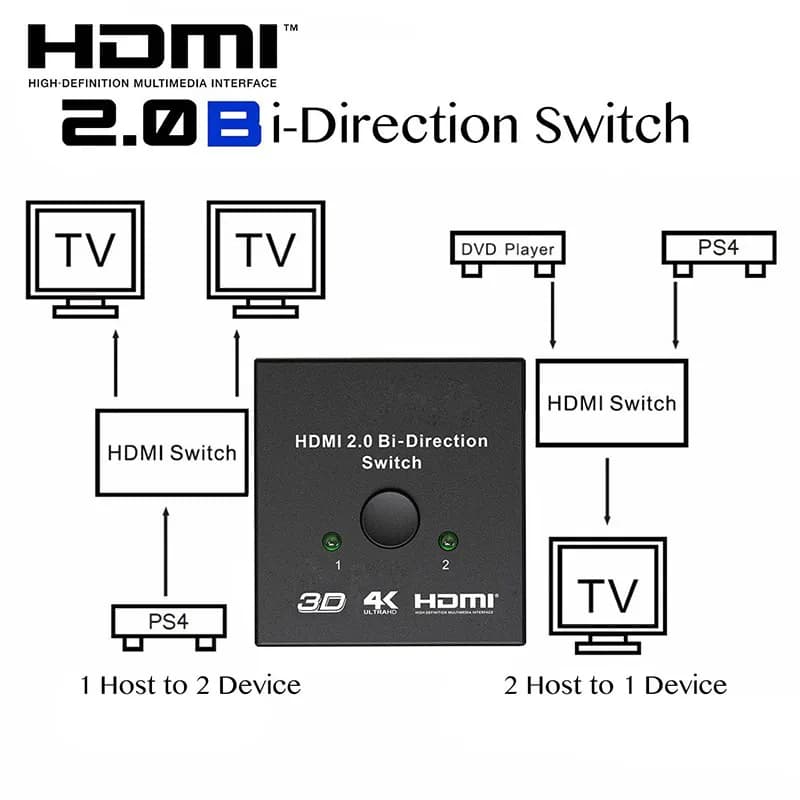

2 HDMI sources (DVD player or PS3), 1 HDMI display device or TV
1 HDMI source (DVD player or PS3), 2 HDMI display devices or TV
No external power supply, maximum operating current: 15mA
Fully compliant with HDMI Specifications V1.0, V1.1, V1.2, V1.3, V1.4, V2.0
Control: Manual Electronic Switch Selection
Work port 2 LED indicators, 3 HDMI connectors
LED: The corresponding indicator light (blue) at work,
Easy installation and simple operation, support 3D signal
Use AWG26 HDMI standard cable, input transmission distance up to 5 meters, output transmission distance up to 5 meters
