C-Beam™ Gantry Plate - Double Wide

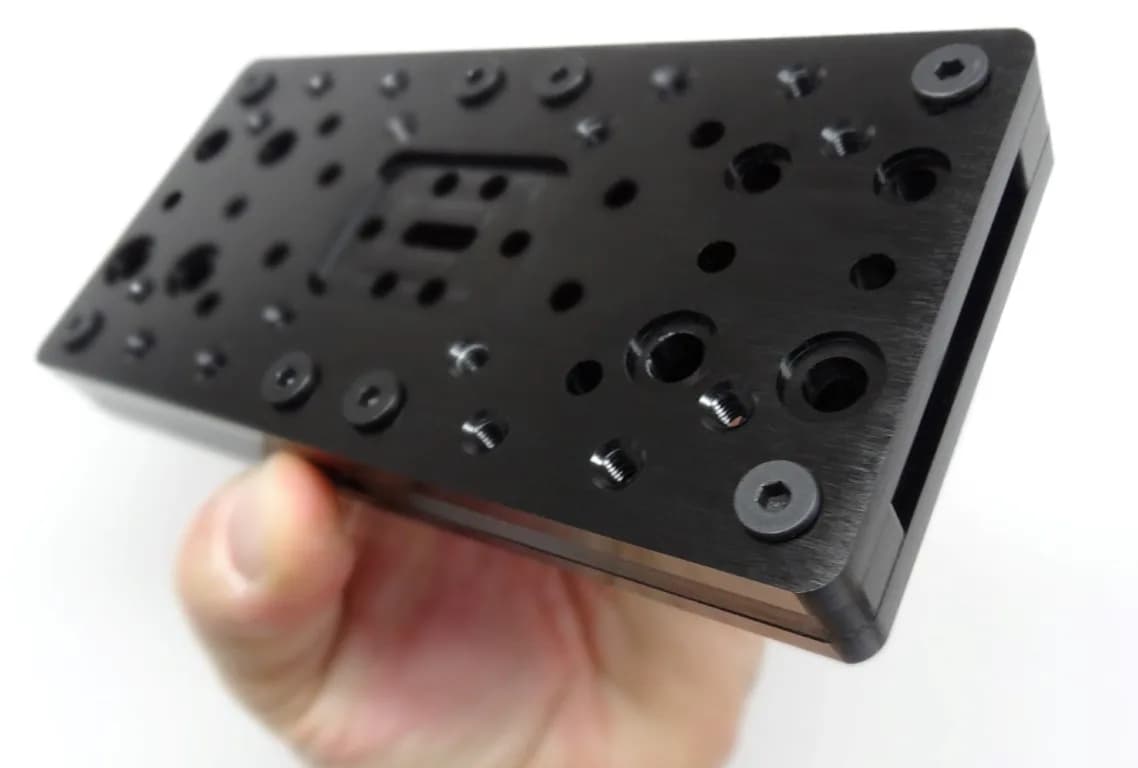

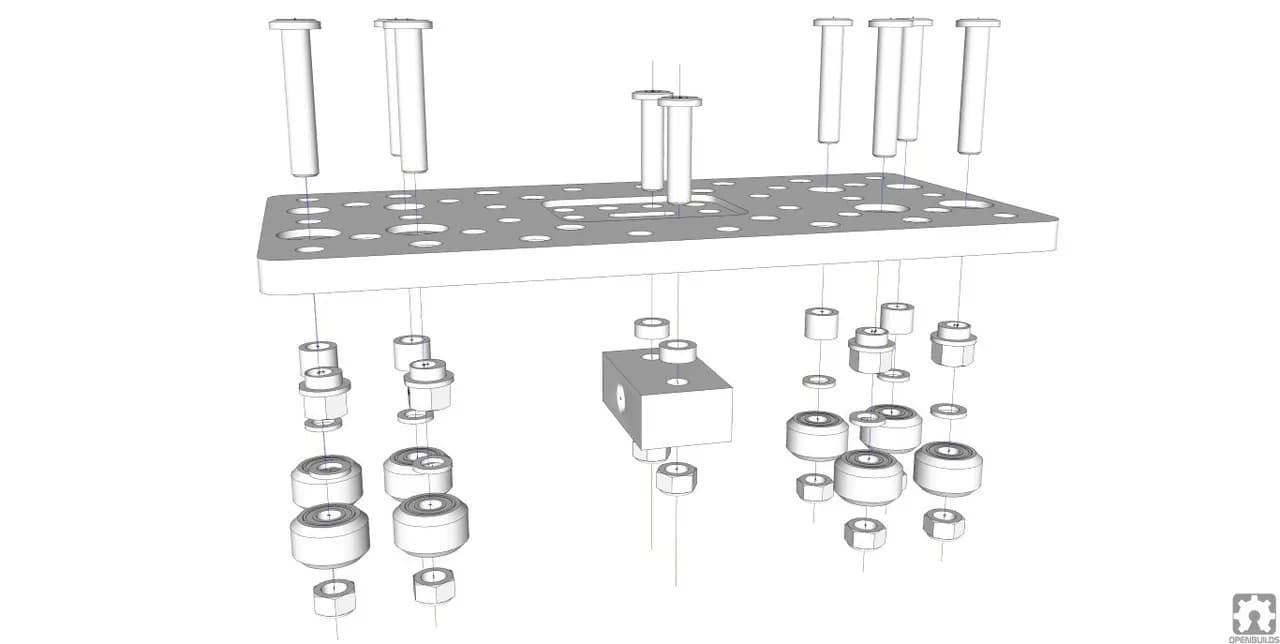

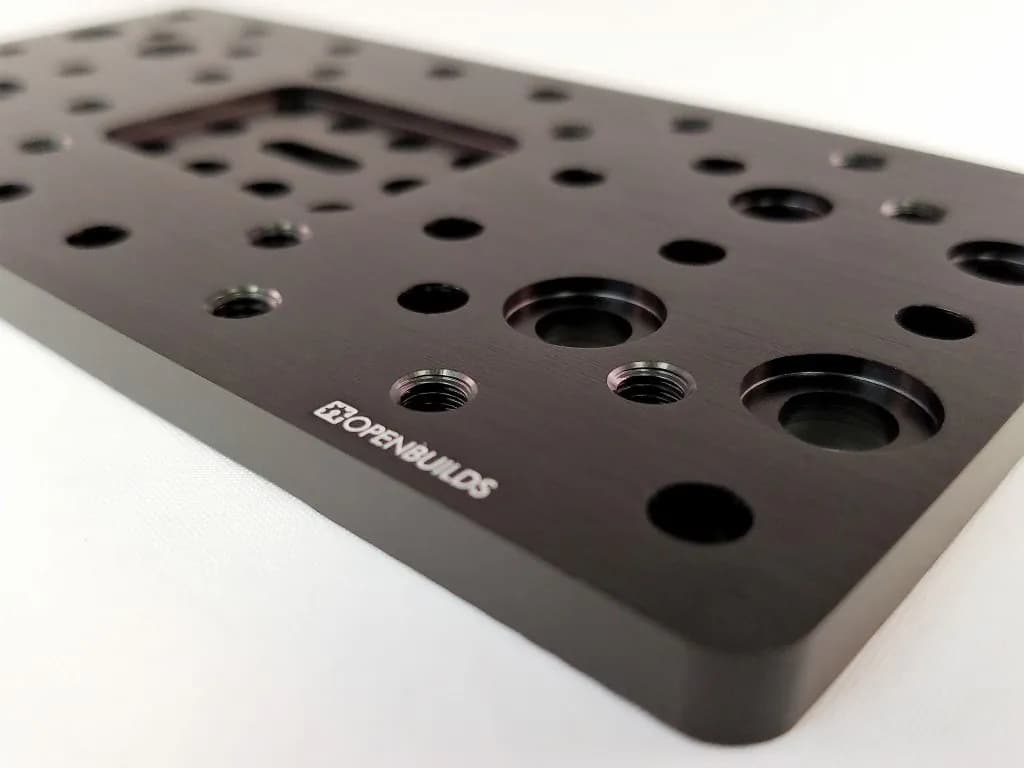

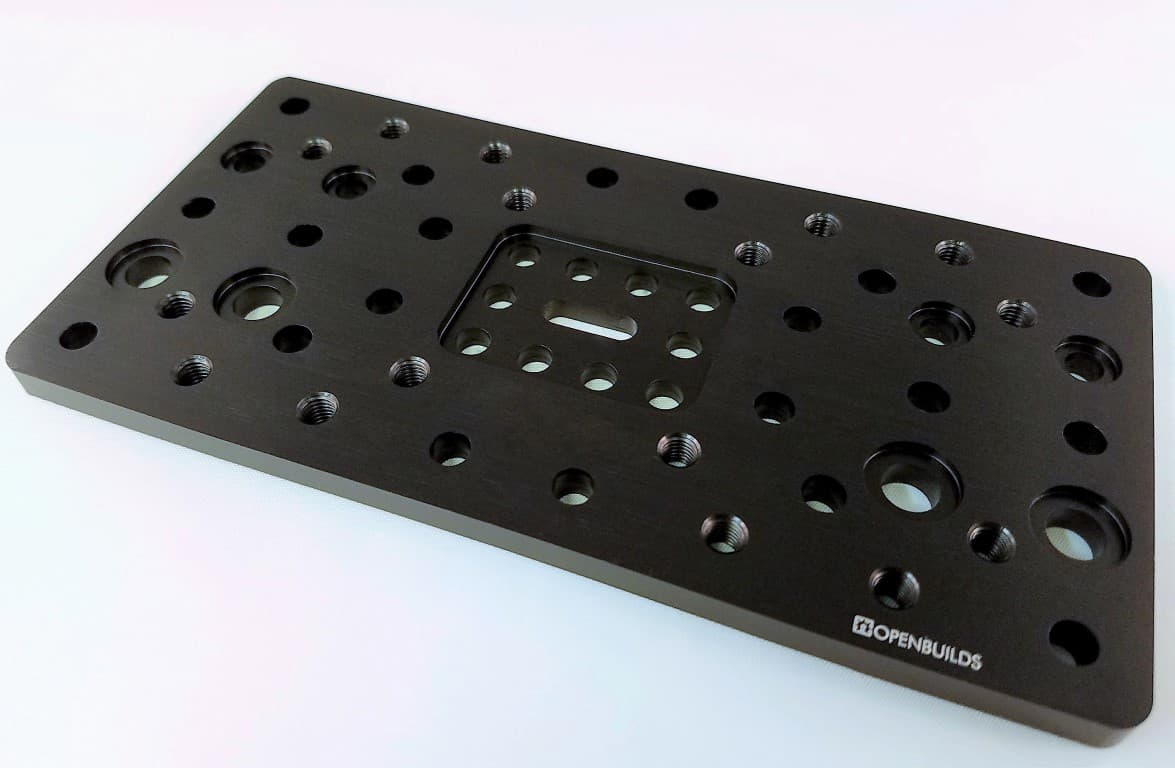

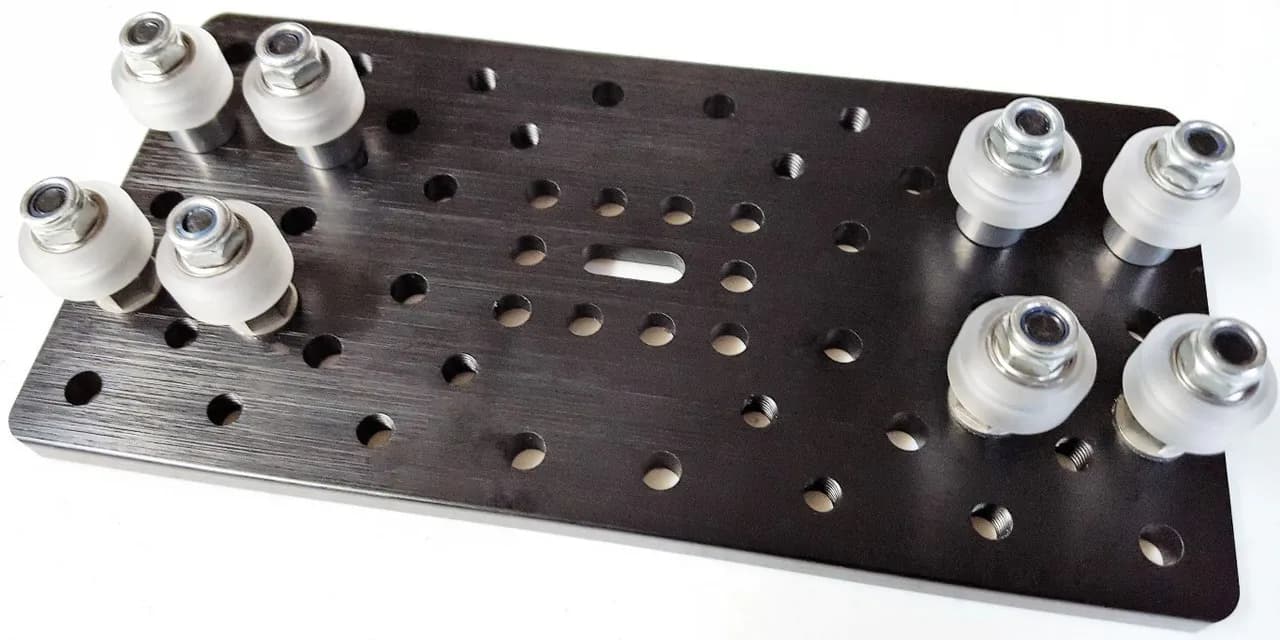

Description : C-Beam™ Gantry Plate - Double Wide This C-Beam Double Wide Gantry Plate is designed to provide a stronger, more stable platform for your Builds. The extra wide wheel stance and ability to add up to 8 Mini V Wheels ensures this plate will be strong enough for most applications. Designed specifically to provide a much stronger Z Axis system but is modular enough to be used on any axis. Flush, clean finish with wheels that ride on the internal v tracks of C-Beam. Can be used with all available C-Beam accessories including the C-Beam Shield. A strong 6mm thick aluminum 6061- T6 plate 155mm Long x 77.5mm Wide Shiny black anodized for a finished look Recessed screw pockets ensure flush mounts Includes pre-tapped mounting holes for C-Beam Riser Plates Adjustable center hole mount allows for belt actuator configurations Can use up to 8 Mini V Wheels to ensure a strong lock into the V-Slot™ v groove View - Download 3D MODEL
